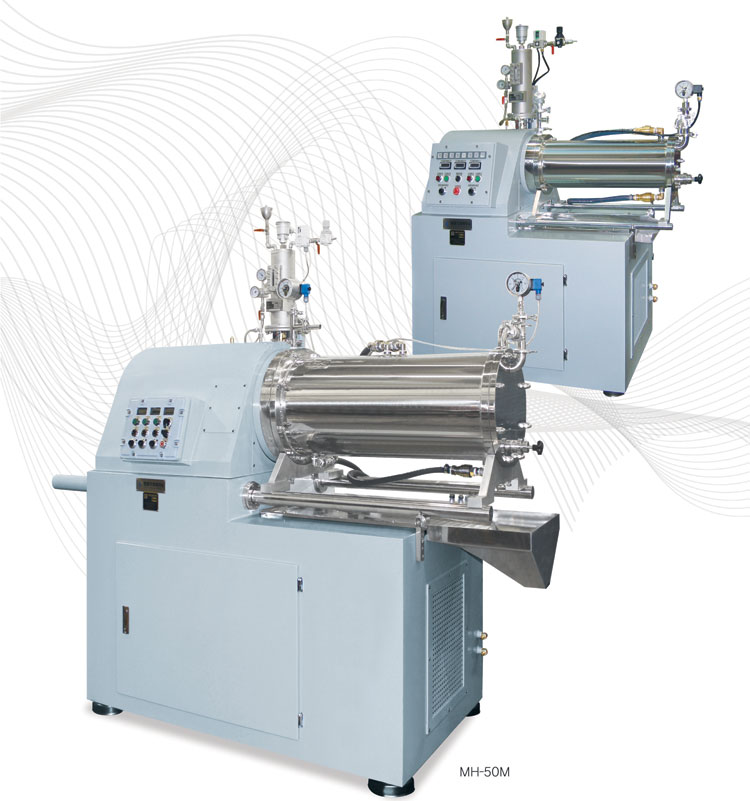

MH Series
FEATURE
- Designed to be suitable for the dispersion of wide range of products.
- Small media can be used by the screen type of media separator.
- Mechanical seal is used for shaft sealing arrangement and several madlines can be connected to use.
- Excellent cooling efficiency.
- Easy to clean and disassemble / assemble.
APPLICATION
- Gravure inks
- Paints and pigments
- Paints for automobiles
- Magnetic inks (audio & video tape, computer, etc.)
- Pharmaceutical industry and biodlemistry
- Cosmetics
OPTION
- Explosion proof type of motor
and control panel
- Material of Mixer
(Stainless steel, Nylon)
Specifications

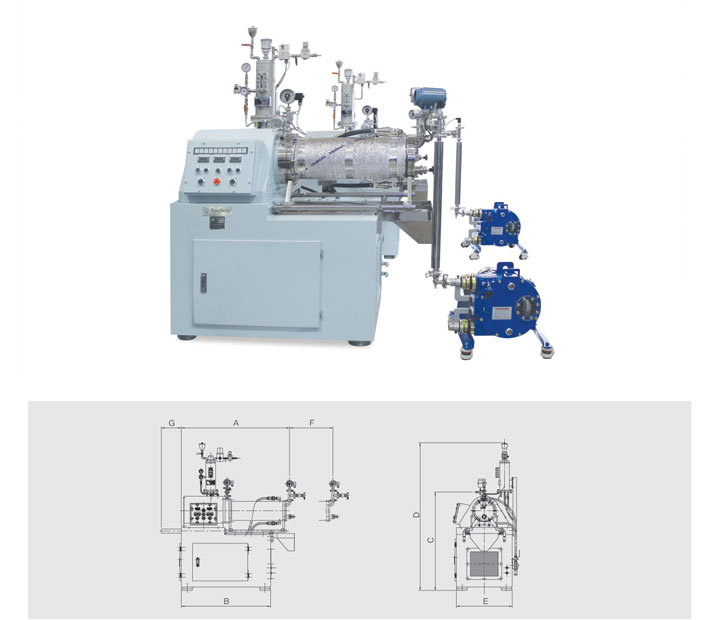

Model | Vessel Capacity |
Motor(Kw) | Impeller speed(m/sec) |
A | B | C | D | E | F | G | |
---|---|---|---|---|---|---|---|---|---|---|---|
Main | Pump | ||||||||||
MH-1.5M | 1.5 | 3.7 | 0.75 | 10,11 | 780 | 700 | 1122 | 1740 | 600 | 328 | - |
MH-5M | 5 | 7.5 | 0.75 | 10,11 | 871 | 700 | 1108 | 1740 | 650 | 391 | - |
MH-10M | 10 | 11 | 1.5 | 10,11 | 1187 | 1000 | 1358 | 2016 | 750 | 542 | - |
MH-20M | 20 | 15 | 1.5 | 10,11 | 1462 | 1150 | 1408 | 2066 | 750 | 879 | - |
MH-30M | 30 | 22 | 1.5 | 10,11 | 1576 | 1280 | 1408 | 2116 | 800 | 955 | - |
MH-50M | 50 | 37 | 1.5 | 10,11 | 1796 | 1465 | 1508 | 2226 | 900 | 1000 | - |
MH-90M | 90 | 55 | 1.5 | 10,11 | 2099 | 1750 | 1818 | 2546 | 1000 | 1190 | 425 |
