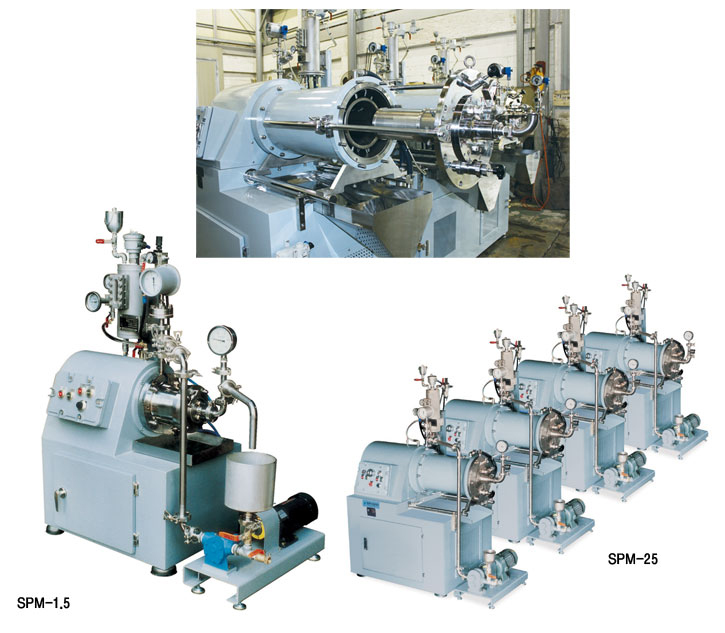

SPM Series

  •
  • Product
  • SPM Series

Specifications

Model Vessel
Capacity
Motor(Kw) Impeller
speed(m/sec)
A B C D E F
Main Pump
SPM-5 4 11 0.75 10,11 975 750 990 1735 650 440
SPM-15 16 22 1.5 10,11 1370 1035 1213 1950 850 750
SPM-25 27 37 1.5 10,11 1505 1150 1204 2110 900 772
SPM-40 40 55 1.5 10,11 1792 1350 1482 2430 1000 894

FEATURE

- Designed to be suitable for the dispersion of ultra-partides.
- The media in microns range is available.
- New cooling system with excellent cooling efficiency.
- Compact size and convenient operation against high productivity.
- Special anti-abrasion steel and tungsten carbide material for grinding chamber extend the durability of the machine.
- Shaft sealing arrangement is equipped with specially designed mechanical seal. Combination of several machines can be arranged.
- Easy to dean and disassemble / assemble.

APPLICATION


- Gravure inks
- Paints and pigments
- Dyes and fluorescent inks
- Paints for automobiles
- Magnetic inks (audio & video tape, computer, etc.)
- Pharmaceutical industry and biochemistry
- Cosmetics
- Food industry (chocolate and sweet)

Specifications

Model Vessel
Capacity
Motor(Kw) Impeller
speed(m/sec)
Main Pump
SPM-1,5 1.5 3.7 0.75 10,11
